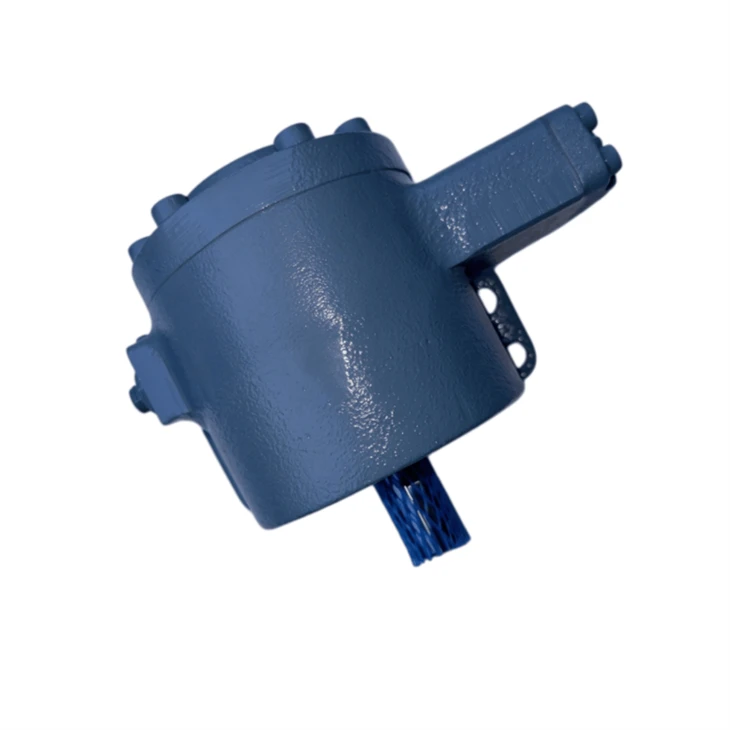

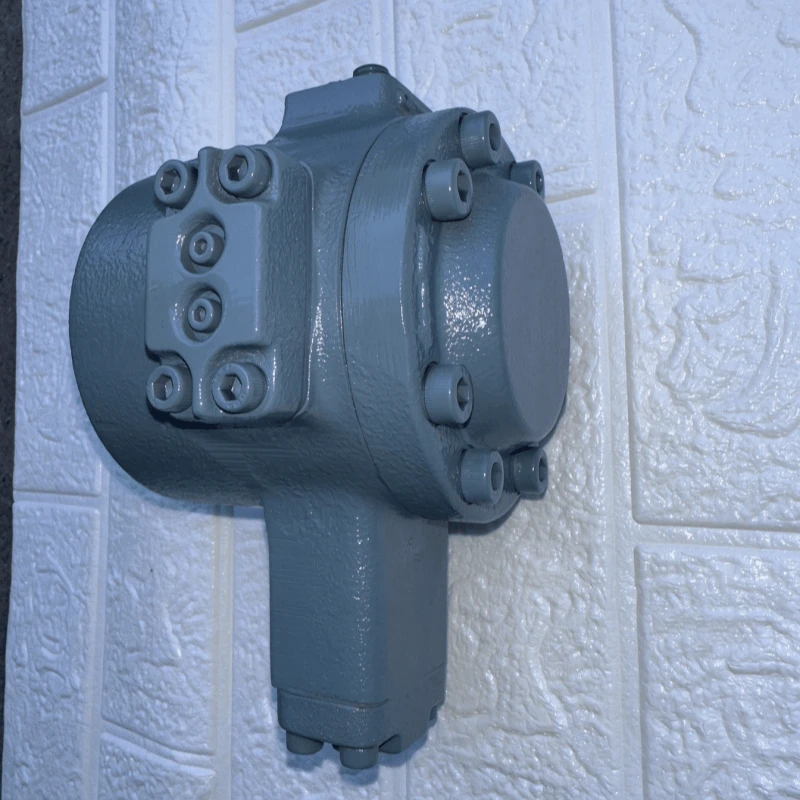

| VDR Series Hydraulic Small Variable Volume Displacement Vane Pump |
|
| Hydraulic Pump For Industrial Machinery | |
| Built-in pressure regulation mechanism, stable output flow and pressure | |
| Low noise and low vibration during continuous running | |
| Good temperature compensation performance | |
| Standard interface design, convenient replacement for old pumps | |
| Foot mounting structure, compact body, easy installation and space saving | |
| Reduce power consumption and oil temperature rise |
VDR Series Hydraulic Small Variable Volume Displacement Vane Pump
VDR Series Hydraulic Small Variable Volume Displacement Vane Pump PERFORMANCE HIGHLIGHTS
This variable vane pump adopts built-in pressure compensation structure for automatic flow adjustment according to system load.
It can simplify hydraulic circuit layout and remove extra relief and unloading valves from the system.
Optimized internal runner design cuts down fluid turbulence and reduces oil temperature rise during continuous operation.
Modified 13-series structure maintains interchangeability with older generation pump units for easy replacement.
Precision machined rotor and vanes deliver stable output flow under fluctuating working pressure.
Foot mounting structure supports straightforward assembly and alignment on different equipment frames.
Balanced pressure design lessens radial load on shaft and bearing components to extend service lifespan.
Moderate working noise level makes it fit for general industrial machinery and automation hydraulic stations.
VDR Series Hydraulic Small Variable Volume Displacement Vane Pump Application Scenarios
Horizontal small injection molding machine, plastic shoe sole injection machine
Surface grinder, internal grinder, vertical metal cutting lathe
Small single-column hydraulic press, bench stamping machine
CNC wood carving machine, wood panel sanding machine
Plastic bag sealing machine, textile warp knitting machine
Small hydraulic power unit for automated clamping fixture
Related Available Hydraulic Small Variable Volume Displacement Vane Pump in VDR Series
VDR-1A-1A3-13
VDR-1B-1A1-13
VDR-1B-1A2-13
VDR-1B-1A3-13
VDR-1B-1A3-22
VDR-1B-1A2-22
VDR-1B-1A5-22
VDR-11A-1A2-1A2-13
VDR-11A-1A3-1A3-13
VDR-11B-2A1-2A2-22
VDR-2A-1A1-13
VDR-2A
