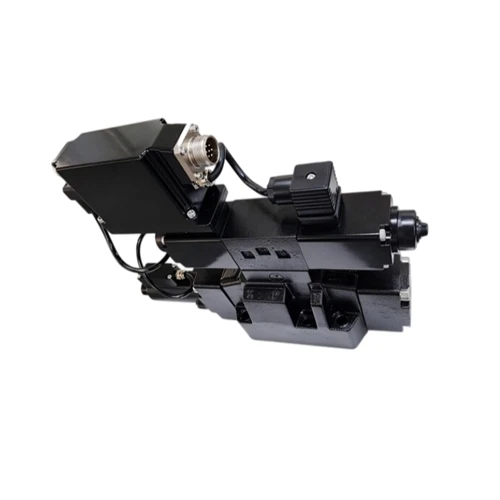

| DHZO Series DHZ0-TEB-SN-NP-071-S2 Hydraulic Proportional Directional Valve |
|
| Closed-loop control. | |
| Positive spool overlap design | |
| Equipped with USB and Bluetooth connection | |
| Encapsulated solenoid coils offer good shock and vibration resistance. | |
| Users can carry out parameter setup, real-time monitoring and fault diagnosis via PC software or mobile application. | |
| Built-in safety central position protects actuators from unexpected movement when power supply fails | |
| Delivering fast dynamic response and precise flow and direction adjustment according to electric input signals |
DHZO Series DHZ0-TEB-SN-NP-071-S2 Hydraulic Proportional Valve
DHZO Series DHZ0-TEB-SN-NP-071-S2 Hydraulic Proportional Directional Valve PERFORMANCE HIGHLIGHTS
Built-in digital amplifier removes extra drive units and simplifies wiring layout for industrial systems
Non-contact LVDT spool position feedback delivers precise closed-loop control without mechanical wear
Precision lapped spool and sleeve assembly ensures low hysteresis and excellent repeatability during operation
USB interface supports convenient parameter tuning and real-time diagnostic via dedicated configuration software
Integrated multi-protection circuit guards against over current, over temperature and power reverse connection
ISO 4401 standard mounting pattern allows direct interchange with matched valve bodies and subplates
Robust enclosure structure achieves high ingress protection level to resist dust and moisture in harsh workshops
Optimized spool profile enables smooth flow adjustment and minimizes pressure impact for automated machinery
DHZO Series DHZ0-TEB-SN-NP-071-S2 Hydraulic Proportional Directional Valve Application Scenarios
Plastic injection machinery: Precise control for injection, holding pressure and plasticizing procedures of injection molding machines.
Metal forming equipment: Hydraulic control for hydraulic presses, bending machines and die casting machines.
Automated production lines: Position and speed closed-loop control for industrial hydraulic actuators.
Material test equipment: High precision loading control for static and dynamic hydraulic test benches.
Special automation machines: Hydraulic servo drive for cutting, stacking and handling systems.
