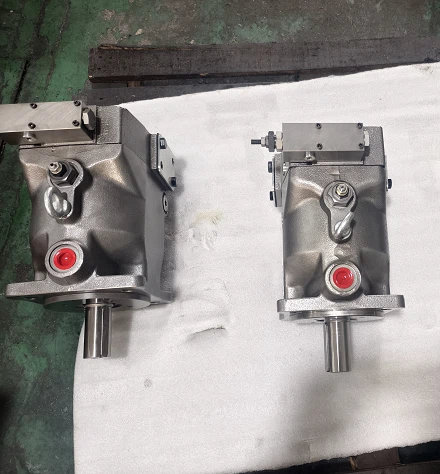

PV0 Series Hydraulic Piston Pump

Description of PV0 Series Piston Pump

High Power Density: Operates at continuous pressures up to 350 bar (5,000 psi) and intermittent peaks of 420 bar (6,000 psi).
Low Noise Operation: Features an integrated pre-compression volume and a rigid body design that significantly reduces outlet flow pulsation and operating noise.
Exceptional Efficiency: Reaches up to 95% volumetric efficiency, reducing energy consumption and heat generation within the hydraulic system.
Durability & Longevity: Built with a heavy-duty design featuring hardened steel components (pistons, cylinder blocks) and precision-ground surfaces to extend service life beyond 10,000 hours.

PV0 Series Piston Pump Parameter Table:



The Advantage of the PV0 Series Pump ：

Energy-Efficient Operation
The pump incorporates a precision pressure compensator that automatically adjusts the vane cartridge displacement based on system demand. This "load-sensing" capability significantly reduces horsepower consumption, minimizes heat generation, and lowers overall operating costs compared to fixed-displacement alternatives.

Compact and Space-Saving Design
Featuring a highly integrated and lightweight construction, the PV0 series is specifically designed for installations where space and weight are at a premium, making it an ideal choice for mobile equipment and compact machinery.

Quiet Performance
Through optimized hydraulic and mechanical design, these pumps operate with notably low noise levels, contributing to a more pleasant working environment and meeting stringent noise regulations.

Durable and Reliable
Built with a robust cartridge-style design and high-strength materials, the PV0 pump is engineered for long service life and dependable operation under continuous high-pressure conditions.

PV0 Series Vane Pump Product series model：

Small Frame (Displacements 16–46 cc/rev)
PV016R1K1T1NMMC (16cc, Clockwise, Metric, Standard Compensator)
PV016L1K1T1NMF1 (16cc, Counter-Clockwise, Metric, Load Sensing)
PV020R1K1T1NMMC (20cc, Clockwise, Metric, Standard)
PV020L1E1T1NMMC (20cc, Counter-Clockwise, SAE Mounting)
PV023R1K1T1NMMC (23cc, Clockwise, Metric)
PV023R1E1T1NMMC (23cc, Clockwise, SAE Mounting)
PV028R1K1T1NMMC (28cc, Clockwise, Metric)
PV032R1K1T1NMMC (32cc, Clockwise, Metric)
PV032L1K1T1NMF1 (32cc, Counter-Clockwise, Load Sensing)
PV040R1K1T1NMMC (40cc, Clockwise, Metric)
PV046R1K1T1NMLC (46cc, Clockwise, Remote Pressure Control)
PV046L1E1T1NMMC (46cc, Counter-Clockwise, SAE)
Medium Frame (Displacements 63–92 cc/rev)
PV063R1K1T1NMMC (63cc, Clockwise, Metric)
PV063L1E1T1NMMC (63cc, Counter-Clockwise, SAE)
PV080R1K1T1NMF1 (80cc, Clockwise, Load Sensing)
PV080L1K1T1NMMC (80cc, Counter-Clockwise, Metric)
PV092R1K1T1NMMC (92cc, Clockwise, Metric)
PV092L1E1T1NMFC (92cc, Counter-Clockwise, SAE, Load Sensing)
PV092R1K1T1NWL1 (92cc, Clockwise, Specialized Seals)
