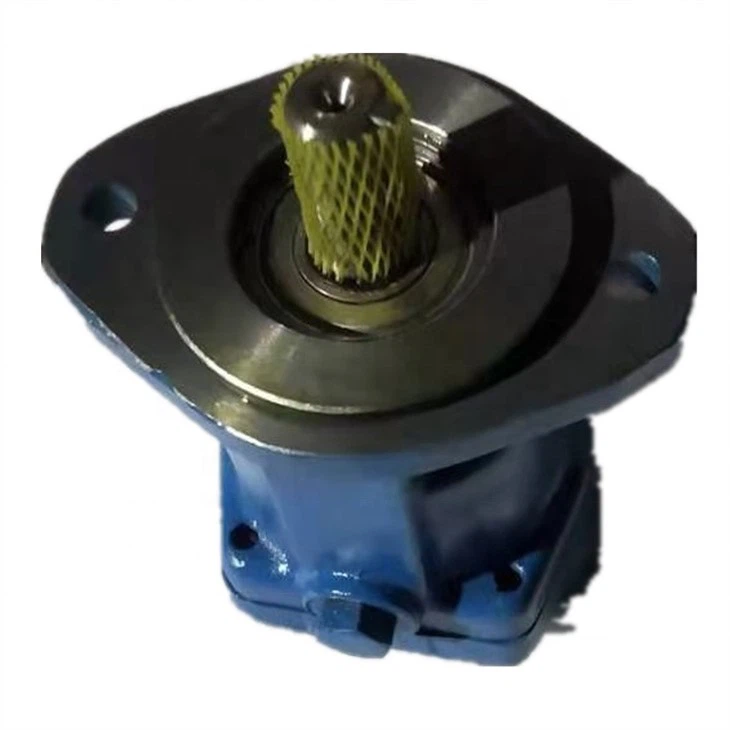

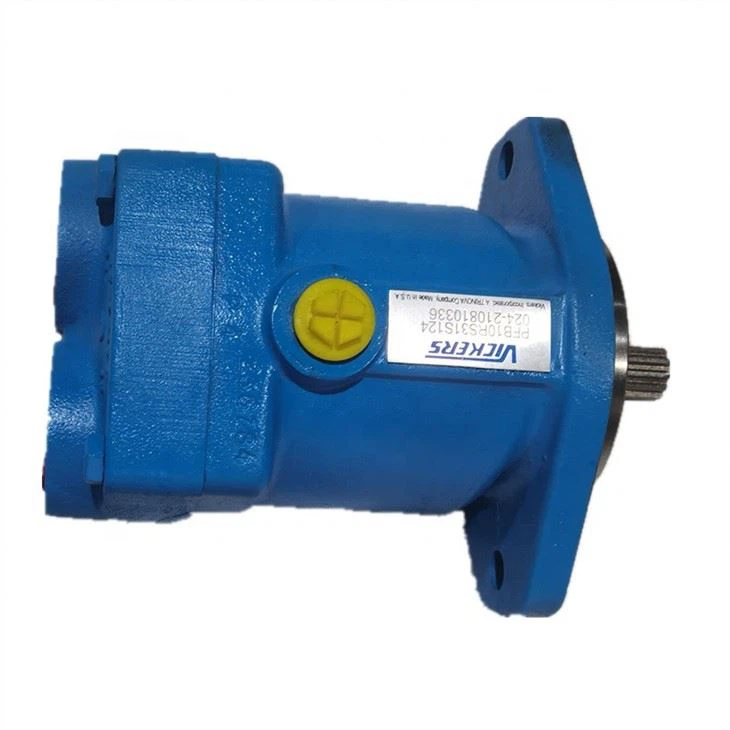

PFB PFB5 PFB10 PFB20 Series PFB45--R/L/U/RY/LY/UY-20/22-S30/S124 Fixed Displacement Piston Pump PFB10RS31S124

Fixed Displacement Piston Pump Advanced design and extensive use of powdered metallurgy permit Vickers to offer inline piston pumps at a substantial weight and cost reduction. PFB pumps feature high volumetric and overall efficiencies, and are proven by millions of hours of rugged field service. Simplicity of design means fewer parts, which increases reliability and also permits fast, easy field service. High speeds, pressures and efficiencies give high power density, resulting in compact pumps that require minimum installed space. SAE straight-thread and 4-bolt flange ports use O-ring seals to minimize chance of leakage

PFB PFB5 PFB10 PFB20 series PFB45--R/L/U/RY/LY/UY-20/22-S30/S124 Fixed Displacement Piston Pump PFB10RS31S124

Horizontal mounting is recommended to maintain the necessary case fluid level Before starting, fill the case with system fluid through the uppermost drain port. The housing must be kept full at all times to provide internal lubrication. The case drain line must be full size, unrestricted, and connected from the uppermost drain port directly to the reservoir so the housing remains filled with fluid. The line must be piped to prevent siphoning and must terminate below the reservoir fluid level. No other lines are to be connected to this drain line
