Northman SWH-G02/G03-C2/C3/C4/C6/C2B/C3B/C4B/C6B/B2/B3/B2S/B3S SOLENOID OPERATED directional valve SWH-G02-B2-D24-20

high flow series proportional electro-hydraulic flow control and relief valve Mounting Pattern ISO 03 /NFPA DO3/CETOP03/NG 06 Maximum Operating Pressure 310 BAR (4500 PSI) Maximum Tank Line Back Pressure 160 BAR (2500 PSI) 2.6A (DC 12V ) Current 1.3A (DC 24V) Power Consumption 28.8 Watts Insulation Class H Surge Protection (Option) Built-in Diode, Surge Voltage < 1 Voltage Fluid Viscosity 10~1000 CST Permissible Contamination Level With NAS 1638 Class 12 (ISO 21/18) Operation Fluid and Temperature Mineral Oil, Anti-Water -25℃~+90℃ (-13℉~+194℉) JIS D1601 Type-3 Class-D Stage-7 Vibration Tolerance @ 0.4mm (0.016 inch) displacement @ 6.8G @ 66.7 HZ *3 Directions JIS D0203 S2 & JIS D0203 D2 (equivalent to IP67) Waterproof Tolerance Proven by heat up to saturated temperture and diving into 4” depth 86°F water repeat 10 cycles

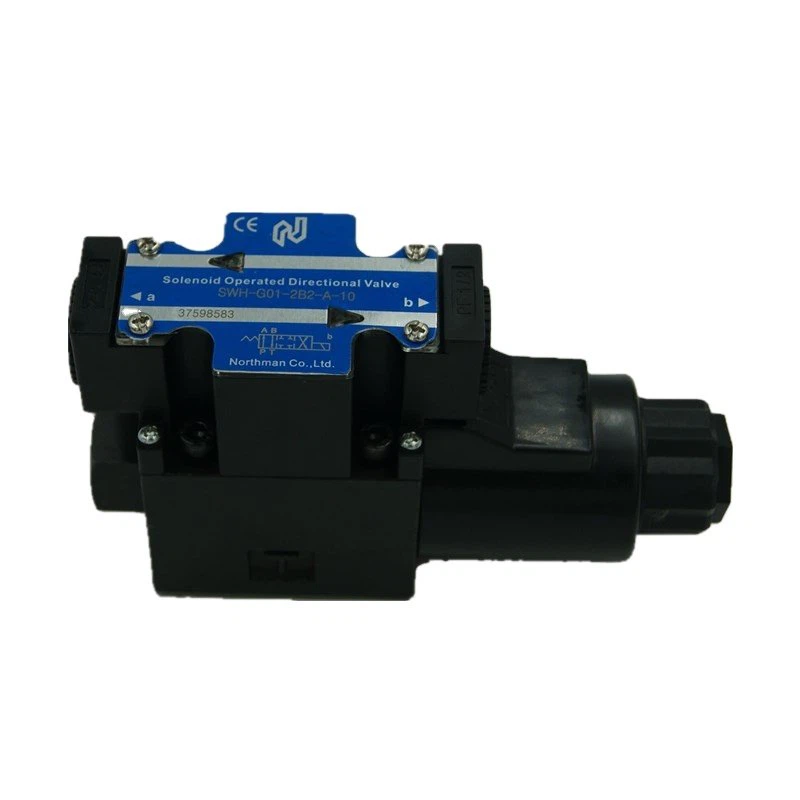

Northman valve SWH-G02-B2-D24-20

Maximum Frequency of Operation 250 cycles/minute 50 msec On ≦ Response Time 100 msec Off ≦ Corrosion Resistance Treatment Zinc Phosphate Compound Single Solenoid approx. 1.5 kgs (3.3 lbs) Weight Double Solenoid approx. 2.0 kgs (4.4 lbs)
