Danfoss Products Import From China Danfoss Thermal Expansion Valve T2 068Z3206 067G2710

Danfoss Products import from china Danfoss thermal expansion valve Introduction to expansion valve T2-068Z3206: Danfoss thermal expansion valve is used to regulate the supply of liquid refrigerant in the evaporator. The supply quantity is controlled by the superheat of the refrigerant. Therefore, this valve is especially suitable for the supply of refrigerant liquid in the dry evaporator, because the refrigerant superheat at the outlet of the dry evaporator is proportional to the evaporator load.

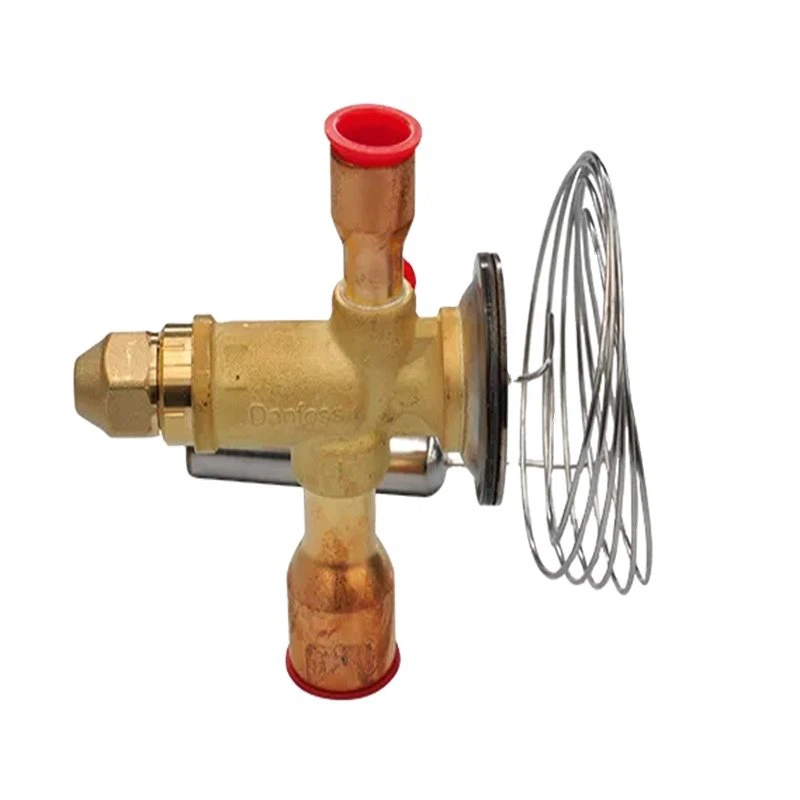

Danfoss Products import from china Danfoss thermal expansion valve T2 068Z3206 067G2710

Features and technical parameters of Danfoss expansion valve T2-TE2:

Large evaporation temperature range

Interchangeable flow port components; Easier inventory; Convenient for capacity matching; Easier maintenance

When the working medium is R22, the nominal cooling capacity is 0.5~15.5kW (0.15~4.5TR)

A valve with MOP function can be provided to prevent compressor motor damage due to excessive evaporation pressure

Double contact temperature sensor - quick and convenient installation

Valves with special temperature range

Good heat transfer effect between pipeline and temperature sensor

Test pressure: 36bar; Allowable working pressure: 28bar

Temperature: after the valve is installed, the temperature of the temperature bulb is 100 ° C; when the temperature bulb is not installed, the temperature of the temperature bulb is 60 ° C
