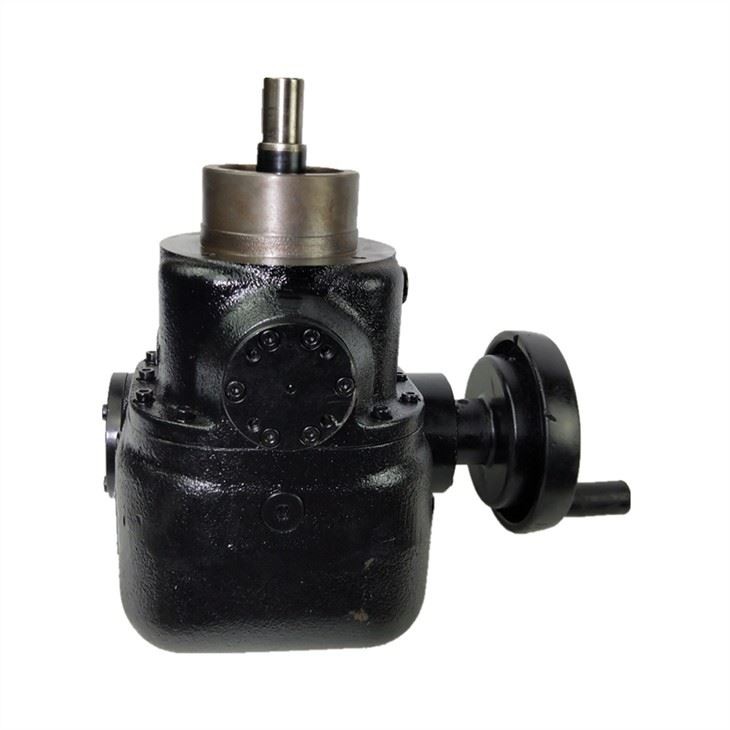

Rexroth A2VK Series A2VK12 A2VK28 A2VK55 A2VK107 High Pressure PU Metering polyurethane injection pumps A2VK12MAOL4GOPE2-SO2

Axial Piston high pressure variable pumps are used for the pumping and

metering of polyurethane components..

The particular advantages offered by the A2VK variable pumps are:

● High metering accuracy and repeatability

of the variable flows

● Manual control via handwheel with built-in-precision measuring

scale or alternatively mechanical rod control, for mounting

pneumatic or hydraulic control cylinders (remote control)

● Operating pressure up to 250 bar

● Low suction pressure, even when pumping highly viscous fluids

● Very little pulsation of flow

● Compatability of pump components with materials to be pumped

(Polyol, Isocyanat) through use of specially matched materials and

special seals

● Quiet operation

● Optimum volumetric efficiency

For certain applications:

Constant capacity models available.
