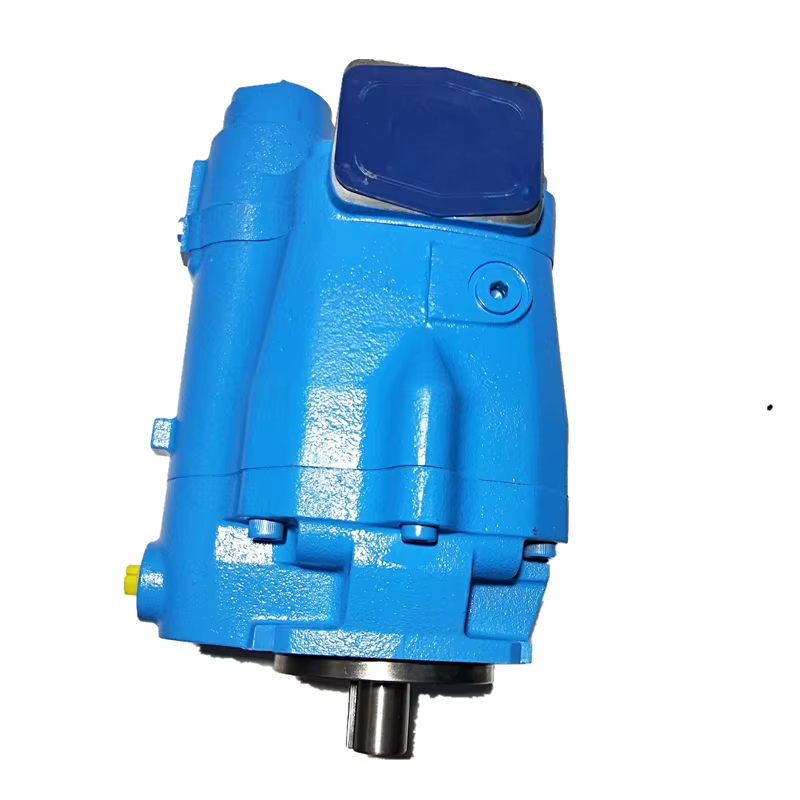

PVM Series Variable Axial Piston Hydraulic Pump

PVM Series Variable Axial Piston Hydraulic Pump Description

Sustained Pressure Capability：The system maintains stable operation at pressures reaching 315 bar continuously.
Advanced Acoustical Engineering:Incorporating a distinctive tri-component assembly and bimetallic wear plate, the design achieves noise suppression performance that surpasses standard industry requirements.
Hydraulic Power Generation:Serves as the primary motive force source in hydraulic circuitry applications.
Multi-Fluid Adaptability:Demonstrates full operational compatibility with mineral-based oils, synthetic hydraulic fluids, and high-water-content emulsion formulations.
Space-Optimized Design:The saddle-configurated yoke geometry enables compact installation in constrained environments while maintaining exceptionally low pressure pulsation below 4%.
Comprehensive Fluid Compatibility:Engineered to perform reliably with mineral oils, synthetic alternatives, and high-water-content hydraulic solutions.

PVM Series Variable Axial Piston Hydraulic Pump Datasheet

About Us

Ningbo Laino is a leading specialist in China's hydraulic industry, dedicated to the manufacturing of pumps, motors, and valves. We offer comprehensive solutions-from design and R&D to production, sales, and maintenance-for complete hydraulic systems. We welcome all procurement inquiries and look forward to building successful partnerships.

Working Principle of the PVM Series Variable Displacement Axial Piston Pump

Power Transmission & Motion Conversion:The pump's drive shaft rotates the cylinder block, which carries the pistons within their respective bores. As the assembly turns, each piston follows the angled surface of the swashplate, converting the rotary input into precise linear, reciprocating motion.

Fluid Handling Process:During operation, as each piston moves through the intake zone, it retracts from the cylinder bore. This action increases the chamber volume, creating a vacuum that draws hydraulic fluid into the chamber. Conversely, when the piston travels through the discharge zone, the swashplate forces it back into the bore. This reduction in chamber volume pressurizes the trapped fluid and forcibly expels it into the hydraulic system.

Key Features:

1.Precision-engineered swashplate design for smooth displacement variation

2.Optimized porting geometry for minimal pressure pulsation

3.Robust bearing configuration for extended service life under high load conditions

4.Compatible with most standard hydraulic fluids

This sophisticated operating principle enables the PVM series to deliver highly efficient fluid power transmission across a wide range of operating conditions and displacement settings.

PVM Series Variable Axial Piston Hydraulic Pump Model:

PVM018ER05CE01AAA28000000A0A
PVM045ER09ES02AAA23000000A0A
PVM074ER09GS02AAA28000000A0A
PVM098ER09GS02AAE21240000A0A
PVM131ER13GS02BYA28000001A0A
PVM141MR10GS02AAE07110000A0A
PVM098MR09GS02AAE15200000A0A
PVM131MR10GS02AAC28000000A0A
PVM141ER10GS02AAE21240000A0A
PVM106ER09GS02AAB28000000A0A
PVM057ER09GS02AAC28200000A0A
PVM098ER09GS02AAC28110000A0A
PVM106ER09GS02AAE23000000A0A
PVM098MR09GS02AAB15200000A0A
PVM131MR10GS02AAB07110000A0A
PVM141MR10GS02AAB21240000A0A
PVM074ER09GS02AAA28000000A0A
PVM131ER13GS02AAA2300000AA0A
