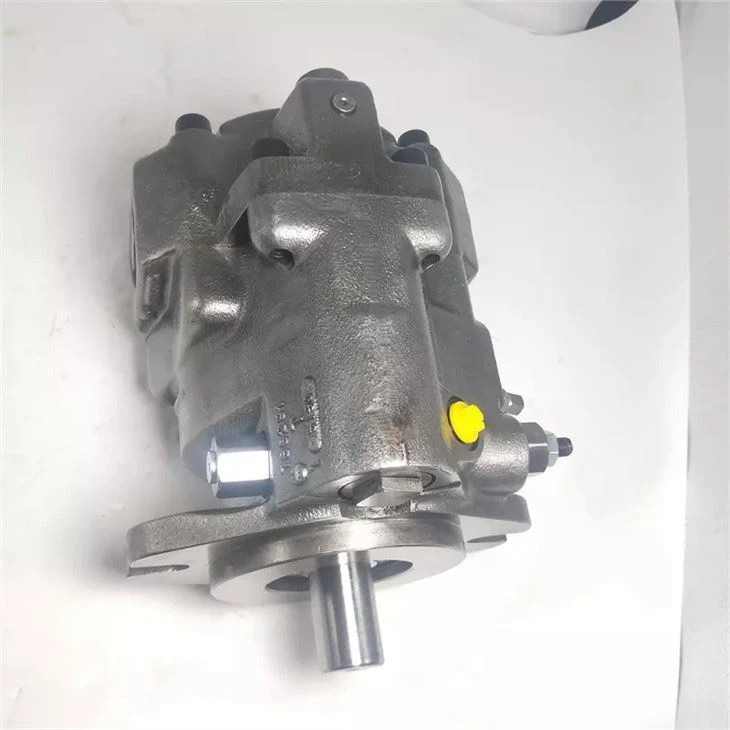

Parker Hydraulic Pump PAVC6592L4AP13X3221

Parker hydraulic piston pump These service parts are intended for use in hydraulic pumps. Incorrect installation or assembly of these parts could cause the pump or pumps being repaired to fail in subsequent use, or to operate incorrectly. The following precautions should be followed: 1. All parts should be cleaned and then lightly coated with mineral oil, or another lubricating fluid compatible with the system fluid being used, prior to assembly. 2. The pump should be disassembled, repaired, and reassembled in a clean environment. 3. Use proper tools to disassemble and reassemble the pump. 4. If you are uncertain as to how to install these parts, you should obtain assistance either from a Parker Hannifin distributor, or from the Fluidpower Pump Division.

Parker hydraulic pump PAVC6592L4AP13X3221

NOTES: 1. Pump shown is clockwise rotation, control option omit, and rear inlet port. For counter clockwise rotation outlet port, control drain and pump controls will be on opposite side. 2. Seal Kit P/N SKPAVC65** (** – Design Series). 3. Rotating Group Kit RRKPAVC65 ** (** – Design Series). R (CW) L (CCW)
