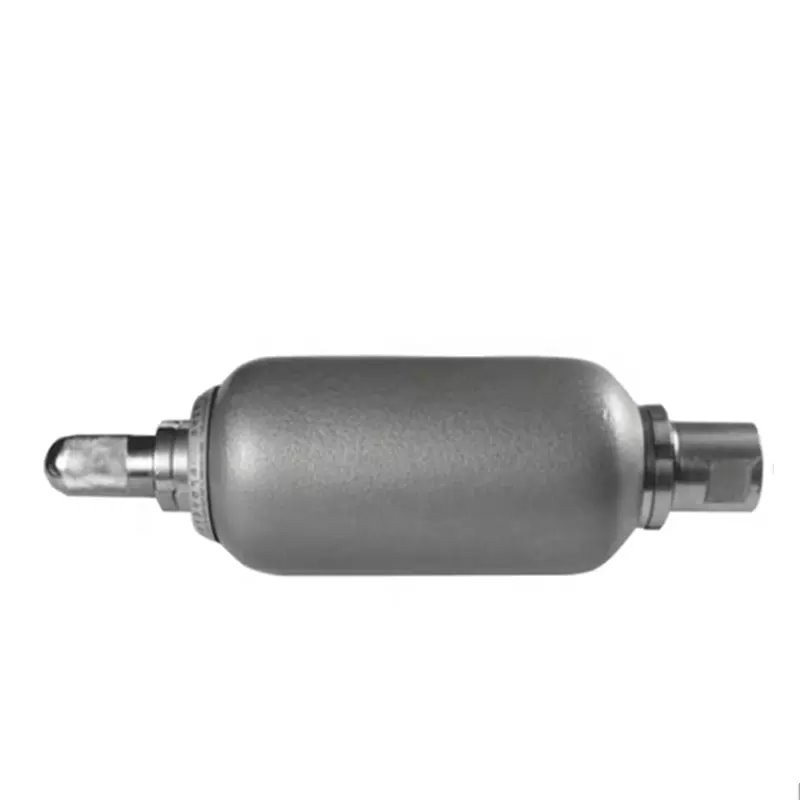

Hydraulic Bladder Accumulator NXQ-AB-6.3L NXQ-AB-10L NXQA-0.4/0.63/1/1.6 NXQ For Wholesale

NXQ for Wholesale At Accumulator sizing. · Please add "Oil leak amount" and "Compressed liquid volume" upon "Required oil discharge volume (Vw)". · Pressure loss amount which will occur between pump and Accumulator shall be deducted from the "Maximum working pressure (P3)", and the pressure loss amount which may occur between Accumulator and actuator shall be added upon "Minimum working pressure (P2)". · Please make gas precharging (P1) at the pressure to suit "Working temperature range", refering to the "Calculation Example" of page 22. · When designing the energy saving hydraulic circuit with an accumulator, it is important to install a pressure switch and to make the ON-OFF power of pump.

Hydraulic Bladder Accumulator NXQ-AB-6.3L NXQ-AB-10L NXQA-0.4/0.63/1/1.6 NXQ for Wholesale

At Accumulator item number selection. · Please select Accumulator which has enough specification such as allowable maximum working pressure and allowable oil flow speed to satisfy the concerned circuit specification. · Please select Accumulator with suitable metalic and chemical material parts to meet the system fluid and working temperature. · When you use fire resistant fluid (Water Glycol Fluid, HWBF and Phosphate Ester Fluid), please select Accumulator which inside surface is not coated. · Please select Accumulator which may satisfy laws, rules, and regulations of the country where the Accumulator may be installed.
