Description of F11 Series Gear Pump
|
40° bent-axis design with spherical pistons and laminated piston rings for high efficiency and thermal stability. |
 |
|
Max intermittent pressure up to 420 bar (6090 psi) and continuous pressure up to 350 bar (5075 psi) |
|
|
Low-weight rotating components enable ultra-high speed operation up to 14000 rpm. |
|
|
High starting torque and robust load capacity under severe working conditions. |
F11 Series Gear Pump Parameter Table:
roup 1, 2 and 3 with displacements from 0.07 in3 /rev (1,07 cm3 /rev) to 5.56 in3 /rev (91.10 cm3 /rev). z Drive shafts, mounting flanges and ports according to the international standards. z Combination of multiple pumps in standard version, common inlet and separated stages. z Integrated outboard bearings for heavy duty application. z Many types of built-in valves.
The Advantage of the F11 Series Pump ：

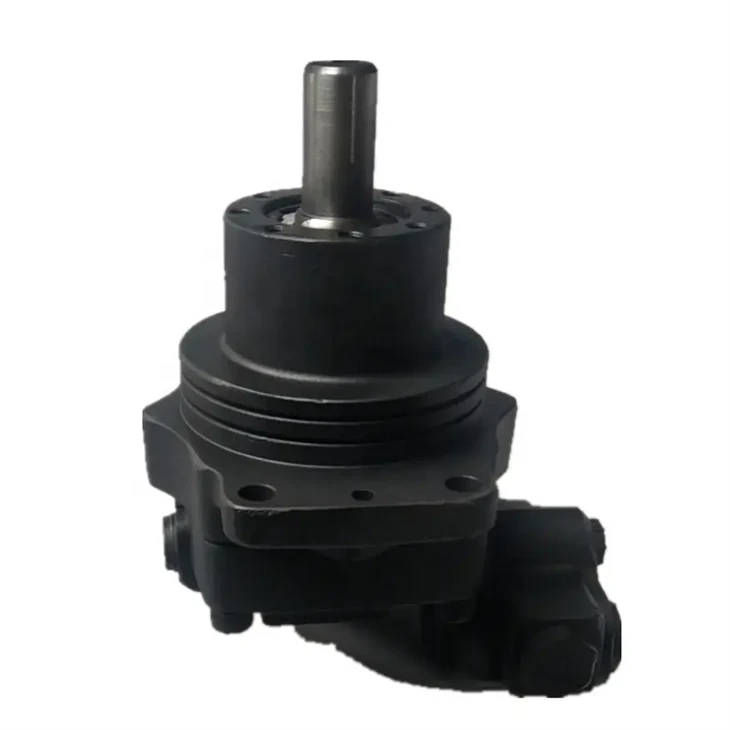

This F11 series hydraulic pumps are high-performance piston pumps designed for construction machinery and heavy-duty hydraulic systems, including typical models F11-010-MB-CV-K-209-000-0, F11-005-MB-CN-K-000, F11-150-MF-CH-K, and F11-010-SB-CS-K-000-0000-00. Featuring a robust axial piston structure, these pumps deliver stable high-pressure output, high volumetric efficiency, and strong anti-pollution capability, ensuring reliable operation under harsh working conditions with heavy loads, vibration, and frequent load changes.
Manufactured with high-strength alloy materials and precision-machined components, the pump series offers excellent wear resistance, long service life, and low mechanical noise. The optimized sealing system effectively prevents oil leakage, while the compact design ensures flexible installation in limited space. With strong interchangeability and stable performance, these pumps support long-term continuous operation and reduce maintenance costs for engineering equipment.
Applicable Environment of F11 Gear Pump:
Construction machinery (excavators, loaders, cranes, concrete pumps).
Agricultural machinery (tractors, harvesters, agricultural implements).
Material handling equipment (forklifts, winches, lifting platforms).
Industrial machinery (injection molding machines, hydraulic presses, machine tools).
Marine equipment (ship steering gears, deck machinery, thrusters).
Mining and forestry equipment (drilling rigs, crushers, saw motors).
Energy and metallurgy equipment (hydraulic systems for power generation and metallurgical lines).
Related F11 Serise Model：
F11-005 Series (4.9 cm³/rev) F11-005-MB-CV-K-000-000-0 F11-005-HU-CV-K-000-000-0 F11-005-RB-CV-D-000-0000 F11-005-GB-CV-K-000-0000
F11-006 Series (6.0 cm³/rev) F11-006-MB-CV-K-000-000-0 F11-006-MB-IV-K-000-000 F11-006-RB-CV-K-000-0000 F11-006-QU-CV-K-000-000
F11-010 Series (9.8 cm³/rev) F11-010-HU-CV-K-000-000-0 F11-010-MB-CV-K-000-000-0 F11-010-RB-CV-K-000-0000 F11-010-GB-CV-K-000-0000
F11-012 Series (12.5 cm³/rev) F11-012-HF-IV-K-000-000-0 F11-012-HU-CV-K-000-000-0 F11-012-QU-CV-K-000-000 F11-012-RB-CV-K-000-0000
F11-014 Series (14.3 cm³/rev) F11-014-HB-CV-K-000-000 F11-014-HF-IV-K-000-000-0 F11-014-LU-SV-S-000-0000 F11-014-SF-IV-K-000-0000
F11-019 Series (19.0 cm³/rev) F11-019-HB-CV-D-000-0000 F11-019-MB-CN-K-000-00
