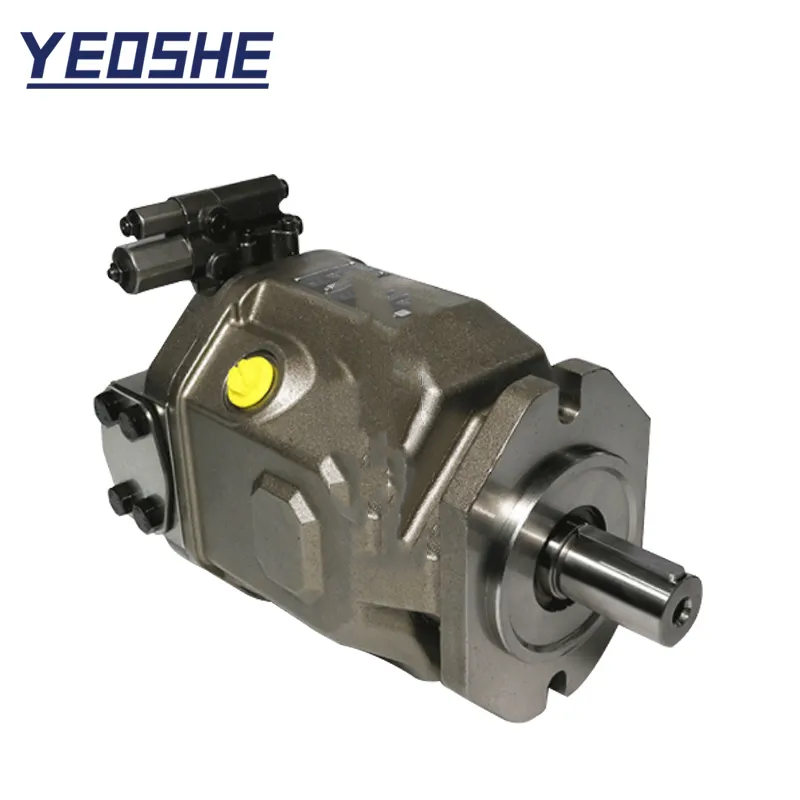

China Tai-wan YEOSHE Piston Pump PA10V(S)O10/18/28/45/60/63/85/100 Series PA10VSO-45-DR/31-R-P-P-A-12-N00 Oil Pump

DR represents the control mode, constant pressure control! In addition, there is DG - two position control; DRG - remote constant voltage control; DFR - pressure/flow control; DFR1 - pressure/flow control, X port closing; DFLR - pressure/flow/power control. The whole meaning is as follows: HA10VS represents the pump model (variable displacement pump, swashplate structure); O represents pump open circuit; 45 represents displacement; DR is the control mode; 31 represents product series; R stands for steering (clockwise, L is counterclockwise); The first P represents the seal (nitrile rubber); The second P represents the metric flat key; A represents two holes for the installed flange; 12 represents the form of oil port on both sides, metric thread; N00 stands for no axis (K is through axis)!!

product-800-139

The plunger pump point spray pump is composed of power end, hydraulic end, transmission device and motor. The whole set of device is installed on the integral metal underframe, which is movable and fixed. The pump adopts horizontal design and vertical symmetrical design, with inlet and outlet on both sides for easy installation. The overall structure is compact, small in size, light in weight, simple in operation, convenient in maintenance, stable in operation, reliable in operation and high in efficiency
