Introduction

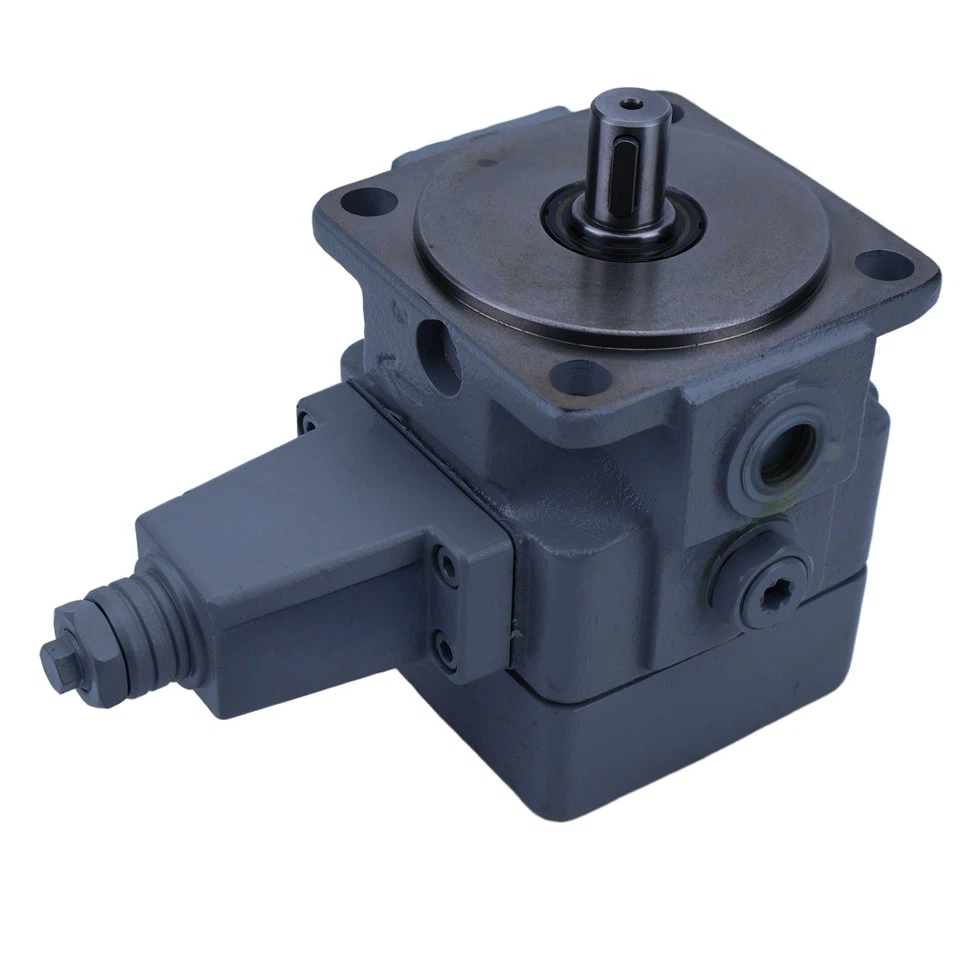

1PV2V3 Series Pressure-compensated Variable Vane Pump-For Construction Machinery
●Rated pressure up to 210 bar
●Pressure-compensated variable design auto-adjusts flow to load
●Low pressure pulsation and long service
●Wide speed range (600-2800 rpm)
●Low noise (≤65 dB(A)
●Easy disassembly and maintenance
●Displacement Range:12,25,40,63,100 (mL/r)



1PV2V3 Series Pump Parameters Table

About Us:

Ningbo Leno Hydraulic Technology Co., Ltd. has been deeply engaged in the hydraulic field for over 10 years, specializing in the R&D, manufacturing, and sales of hydraulic pumps, hydraulic motors, hydraulic valves, and complete sets of hydraulic components. The company possesses a comprehensive product system and mature production capabilities. With stable and reliable product quality at its core, Leno strictly controls every stage of production, testing, and assembly to ensure product performance and service life meet the highest industry standards.

Leveraging a professional technical team and extensive industry experience, Leno Hydraulics delivers stable and tailored hydraulic solutions for engineering machinery, metallurgical equipment, mining machinery, agricultural machinery, marine vessels, and lifting/transportation equipment. Rooted in technology, backed by quality, and connected through service, the company delivers comprehensive solutions-from product selection and technical support to after-sales maintenance-for domestic and international clients. By upholding professionalism and integrity, Leno Hydraulics earns long-term customer trust and sincerely collaborates with partners across industries to build enduring partnerships.



Product Advantages of 1PV2V3 Series Vane Pump:

1.Stable performance & strong pressure output：With optimized structure, it delivers stable pressure, low pulsation and smooth operation, ensuring long-term reliable performance under rated working conditions.

2.High efficiency & energy saving：The variable design automatically adjusts flow according to load, reducing unnecessary loss and system heat, lowering operating costs.

3.Low noise design：Precision stator curve and vane structure greatly reduce noise, making it ideal for precision machine tools and quiet working environments.

4.Wear-resistant & long service life：Key parts adopt high-quality wear-resistant materials, with strong anti-fatigue performance, low failure rate and long service life.

5.Compact structure & easy maintenance：Small size, light weight, flexible installation and high universality. Wearing parts can be replaced quickly, reducing maintenance time and cost.

6.Wide application & strong compatibility：Suitable for machine tools, injection molding machines, die-casting machines, hydraulic systems and automation equipment, with high interchangeability.

7.Reliable quality & strict testing：Each pump passes comprehensive performance tests before delivery, ensuring stable and qualified quality.


1PV2V3 Hydarulic Vane Pump Maintenance Guide

1.Fluid Management: Hydraulic oil must meet NAS 10 cleanliness standards, with viscosity maintained between 20-300 cSt. Replace oil every 2000-3000 hours, simultaneously replacing the 25μm precision filter element.

2.Regular Inspections: Weekly checks for leaks or abnormal noises. Monthly measurement of operating temperature (maintain between 30-60°C). Disassemble and inspect wear-prone components like vanes and seals every 5000 hours, replacing worn parts promptly.
3.Shutdown Maintenance: For extended shutdowns (over 1 month), drain all oil from the pump or inject rust-preventive oil. Before restarting, fill with fresh oil and manually rotate the shaft 3-5 turns to purge air and prevent dry running.

4.Environmental Requirements: Keep away from heat sources and equipment with strong vibrations. Ensure the installation environment is well-ventilated to prevent pump corrosion and motor moisture ingress.

1PV2V3 Series Product Model:
1.Mainstream Single-Stage Pump Models：
1PV2V3-30/12RA01MC12A1 ; 1PV2V3-30/25LA01MF25A1;
1PV2V3-30/40RA01MC40A2 ; 1PV2V3-30/63LA01MF63A1;
1PV2V3-40/100RA01MC100A2 ;

2.Twin Pump Model：
1PV2V3-30/25+40RA01MC25A1;1PV2V3-30/40+63LA01MF40A2;
1PV2V3-40/63+100RA01MC63A1;

3.Special Custom Models
1PV2V3-30/40RA01MC40A1-L;1PV2V3-30/63LA01MF63A2-H
1PV2V3-30/25RA01MC25A1-S;
