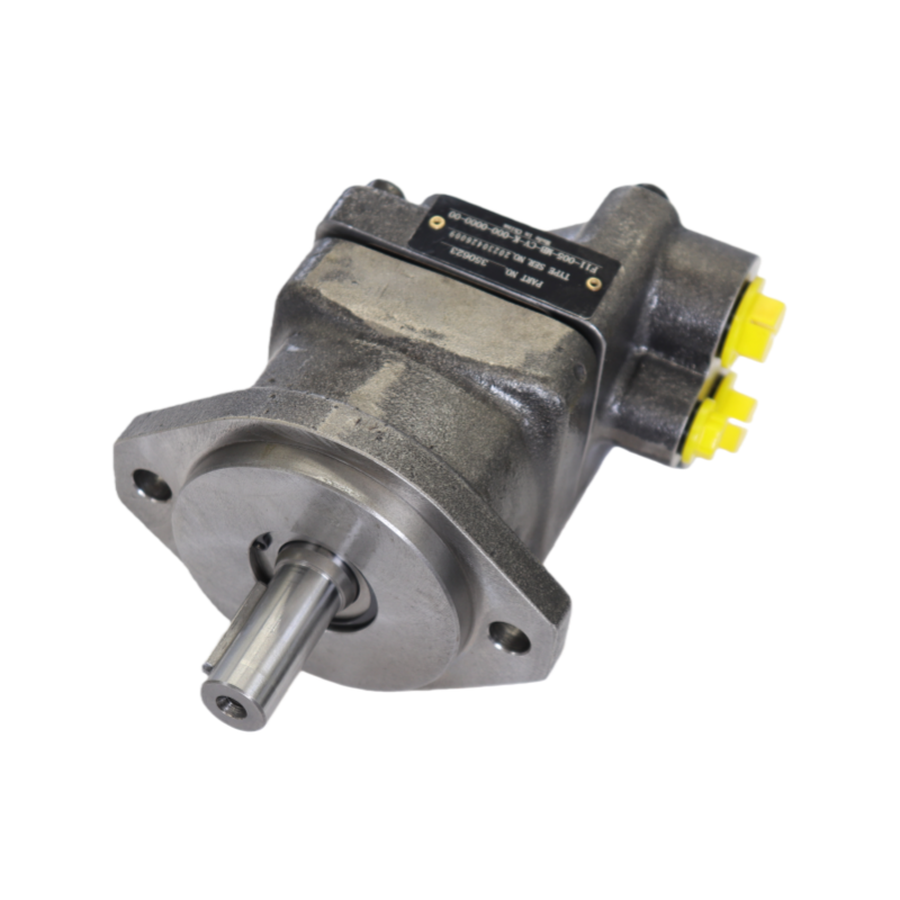

Replace Paker F11 Series Hydraulic Motor

Replace Paker F11 Series Hydraulic Motor
The laminated piston rings offer significant advantages, such as minimal internal leakage and excellent heat resistance and shock resistance
The pump models feature a meticulously designed flow distributor to enhance speed and reduce noise. Both left-hand and right-hand versions are available.
The F11/F12 motors generate considerable torque during startup and at low speeds.
Heavy-duty roller bearings allow for considerable external axial and radial loads on the shaft.
Standardized mounting interfaces (flange/foot) adapt to globally universal mounting dimensions with high interchangeability; modular design allows separate replacement of vulnerable parts (seals, port plates); disassembly and assembly can be completed without special tools, with low maintenance costs
The cylinder block is made of forged alloy steel with impact resistance up to 1200 MPa; the plunger surface is hardened (HRC 60+), with excellent wear resistance and continuous service life ≥8000 hours; integrated overload protection function prevents damage to core components due to overpressure.​
Operating temperature ranges from -25~110℃, suitable for severe cold and high-temperature working conditions

Replace Paker F11 Series Hydraulic Motor Data Sheet



About us:

Ningbo Lainuo Hydraulic Technology Co., Ltd., boasting 10 years of dedicated experience in the hydraulic sector, is an advanced manufacturing enterprise that integrates hydraulic system design, R&D, production, sales, and maintenance. Its core product portfolio includes hydraulic pumps, hydraulic motors, and hydraulic valves. Backed by solid technical expertise, its products find wide application in construction, marine, mining, and oilfield machinery, alongside heavy-duty equipment like bulldozers and road rollers, delivering reliable power solutions to clients. Upholding the principle of integrity in operations, the company eagerly awaits your inquiries and cooperation!

Replace Paker F11 Series Hydraulic Motor Working Principle:

1.Core Structure：Composed of cylinder block, plungers, swashplate, port plate, output shaft and pressure compensation mechanism, adopting axial piston energy conversion design to realize efficient transformation from hydraulic energy to mechanical energy based on Pascal's principle.​
2.Power Transmission Mechanism：High-pressure hydraulic oil enters the cylinder block plunger cavity through the port plate, pushing the plungers to reciprocate along the swashplate inclined plane. The mechanical interaction between plungers and swashplate drives the cylinder block to rotate, thereby driving the output shaft to output torque; the swashplate inclination angle is fixed (fixed-displacement motor), torque is proportional to system pressure, and speed is proportional to input flow.​
3.Distribution & Compensation：The port plate adopts a double-acting structure to precisely control the inlet and outlet timing of hydraulic oil, avoiding pressure impact; the built-in pressure compensation valve automatically balances system pressure fluctuations, protects the contact surface between plungers and swashplate, and improves operational stability.​
4.Brake Adaptation Design：The enhanced type (F11) reserves a brake interface, which can integrate a wet brake to achieve shutdown self-locking, suitable for heavy-load working conditions (such as crane slewing, construction machinery travel).​
5.Sealing Guarantee：The composite seal structure is suitable for high-pressure working conditions, preventing internal and external leakage of hydraulic oil, while reducing friction loss and extending service life.

Replace Paker F11 Series Hydraulic Motor Application Example :

• Industrial Manufacturing: Injection molding machine clamping drive, die-casting machine injection mechanism, hydraulic press power unit;​
• Construction Machinery: Pile driver vibration hammer, mini-excavator slewing, roller travel system
• Marine & Special Equipment: Ship deck hoisting machinery, port handling equipment, mine winch drive
• Energy & Infrastructure: Wind power hydraulic yaw, hydropower station gate hoisting, high-pressure cleaner power head
• Transportation Infrastructure: High-speed rail bridge construction equipment (gear-rack drive systems), tunnel boring machine propulsion mechanisms, port lifting equipment
• Construction Machinery: Excavator travel mechanisms, loader bucket drives, crane slewing devices, roller vibration systems

Replace Paker F11 Series Hydraulic Motor Model:

F11-10-MF-IV-K-000-0000-P0 F11-14-RF-IV-D-000-L130-P0 F11-19-MS-SV-S-000-0000-P0 F11-06-MF-IV-Z-000-0000-P0​
F12-030-MF-IV-D-000-0000-P0 F12-040-RF-IV-K-000-0000-P0 F12-060-MS-SV-S-000-0000-P0 F12-080-MF-IV-D-000-0000-P0​
F12-090-RF-IV-K-000-L130-P0 F12-110-MS-SV-S-000-0000-P0 F12-125-MF-IV-Z-000-0000-P0 F12-150-RF-IV-D-000-0000-P0​
F12-152-MF-SV-S-000-0000-P0 F12-250-QF-SV-S-000-0000-P0 F11-150-MF-IV-K-000-0000-P0 F11-250-RF-IV-D-000-0000-P0​
F12-040-MF-IV-K-000-L130-P0 F12-060-RF-IV-Z-000-0000-P0 F12-080-MS-SV-S-000-0000-P0 F12-110-MF-IV-D-000-0000-P0
