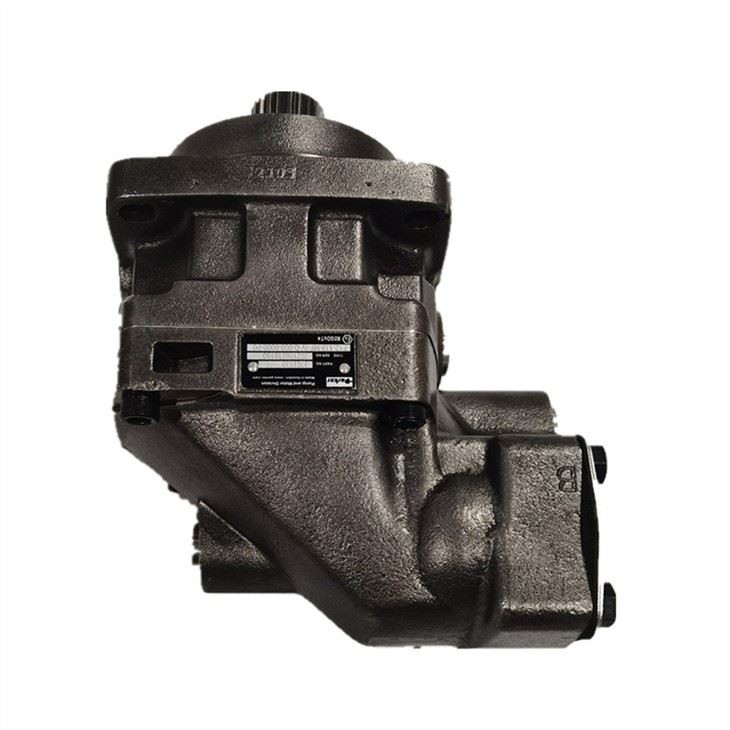

Parker hydraulic motor F12-125-MF-IV-D-000-0000-P0 F12-110-MS-SV-S-000-0000-P0 F12-110-MF-IV-Z-000-0000-P0 F12-090-MF-IV-D-000-0.

Part no 3786589

Old name F12-125-MF-IV-D-000-000-P

Weight 35.9kg

Country of Manufacture Sweden

Manufacturer Parker

Displacement 125.0 cc / 7.63 cu.in.

Function Motor

Design Reversible Mounting Standard

Main connections SAE 1-1/4" 6000 PSI / M14

Mounting flange ISO 125

Flange diameter 160 mm

Shaft seal High pressure FPM

Shaft type Metric spline

Shaft size W45x2x21x9g M16

Version number Bearing house, Standard Option 1 Standard (no option)

Option 2 Prepared for speed sensor

Downloads Apply to see more files

Tariff code 8412298190
