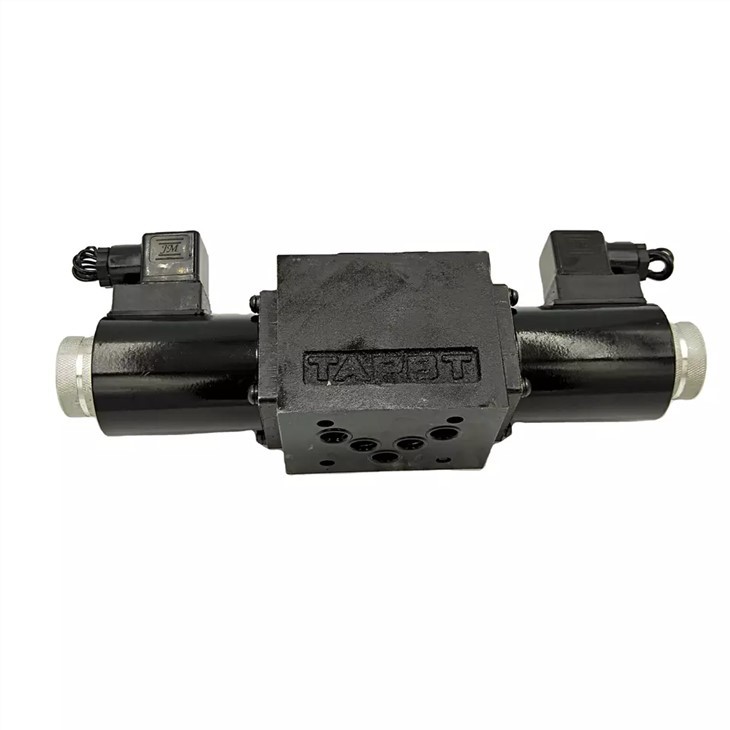

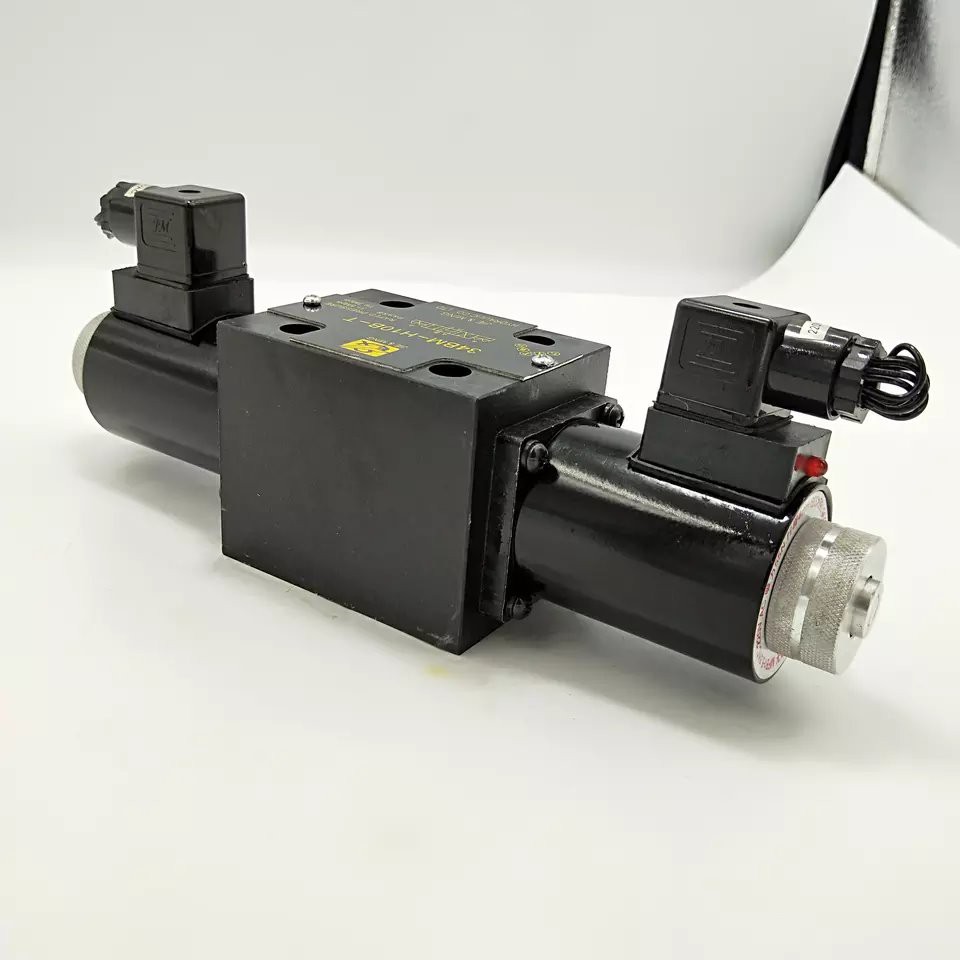

Hydraulic Solenoid Valve 34EO 34BM Of 34BM-H10B-T 34EO-H1OB-T 24V 34BO-H10B-T 220V 34EY-H10B-T 24V 34BY-H10B-T 220V Valve

high flow series proportional electro-hydraulic flow control and relief valve Directional valves with rotary knob are generally provided with a detent. Directional valves with hand lever are optionally available as 2- or 3-position valve, and with hydraulic or pneumatic actuation only as 2-position valve with detent. Directional valves with roller plunger are generally designed without detent. Depending on the valve type, when actuating elements with detents are used, each spool position can be locked. When actuating elements without return spring and without detent are used, the spool position in the nonoperated state is not defined

hydraulic Solenoid valve 34EO 34BM of 34BM-H10B-T 34EO-H1OB-T 24V 34BO-H10B-T 220V 34EY-H10B-T 24V 34BY-H10B-T 220V valve

These directional valves basically consist of housing (1), one actuating element (2.1) (roller plunger, hand lever, rotary knob) or two actuating elements (2.2) (hydraulic, pneumatic actuator), control spool (3) and one or two return springs (4). In the non-operated condition, control spool (3) is held by return springs (4) – in the case of rotary knob operation by detent (5) – in the central or initial position (an exception are impulse spools with hydraulic or pneumatic actuation). The actuating elements shift control spool (3) to the desired position
