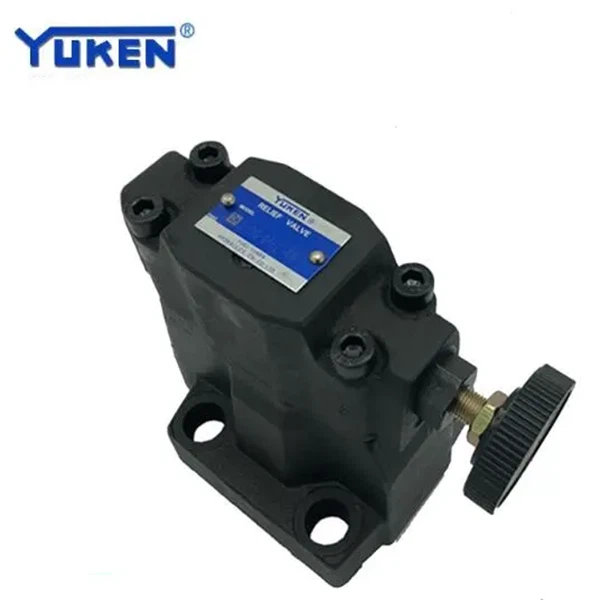

Japan YUKEN SBG-03-B-L Pilot-operated Relief Valve S-BG-03-L-40 SBG-06-H-R 10 S-BG-03-V-L Hydraulic Pressure Reducing Valve

Direct acting solenoid valve Principle: When energized, the electromagnetic coil generates electromagnetic force to lift the closing member from the valve seat, and the valve opens; When the power is cut off, the electromagnetic force disappears, and the spring presses the closure against the valve seat, closing the valve. Features: It can work normally under vacuum, negative pressure, and zero pressure, but the passage generally does not exceed 25mm. Japan YUKEN Oil Research Balancing Valve (Pressure Reducing Relief Valve) RBG-06-R-10 YUKEN vane pump has the advantages of low noise, wide flow range, and high pressure. Applied in light industry machinery (injection molding machines, hollow molding machines, die casting machines, shoe machines, etc.). Forging machinery (such as pipe bending, hydraulic presses, bending machines, etc.), metallurgical machinery, port machinery, and other industries. YUKEN plunger pump has the characteristics of volume, energy saving, diverse control, and strong flexibility, and is used in injection molding machines, hydraulic presses, steel plants, machine tools, walking machinery, hydraulic elevators, and environmental protection plants.

product-800-139

Main Products
YUKEN plunger pump, YUKEN variable piston pump, YUKEN vane pump, YUKEN gear pump, YUKEN hydraulic cylinder, YUKEN hydraulic motor, YUKEN direction valve, YUKEN flow valve, YUKEN pressure valve, YUKEN pressure flow valve, YUKEN electro-hydraulic proportional control valve, etc.
Product Series
YUKEN plunger pump series includes: AR16, AR22, A10, A16, A22, A37, A56, A70, A90, A100, A145, A3H;
YUKEN vane pump series includes: single pump PVR1, PVR2, PVR3, PVR4, PV2R4A, 50T, 150T, PV11R, PVL;
Double pump PVR12, PVR13, PVR23, PVR24, PVR34.

The solenoid valve has a closed chamber with through holes at different positions, each of which leads to a different oil pipe. In the middle of the chamber is a valve, and on both sides are two electromagnets. The solenoid coil on which side is energized will be attracted to which side of the valve body. By controlling the valve body to block or leak out different oil discharge holes, while the oil inlet hole is normally open, the hydraulic oil will have different oil discharge pipes, and then the pressure of the oil will push the cylinder and drive the rod, The rod drives the mechanical device to move. In this way, the mechanical movement is controlled by controlling the current of the electromagnet.
