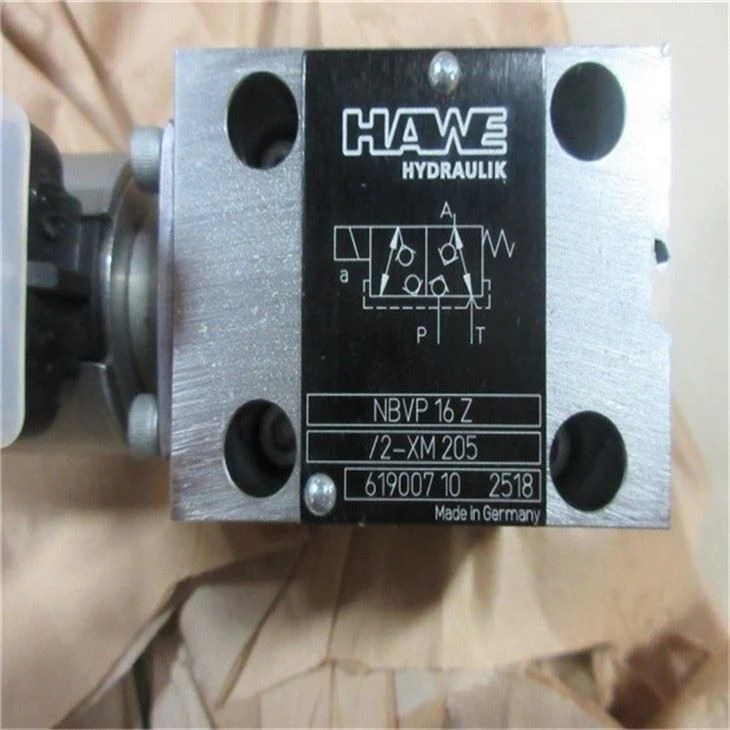

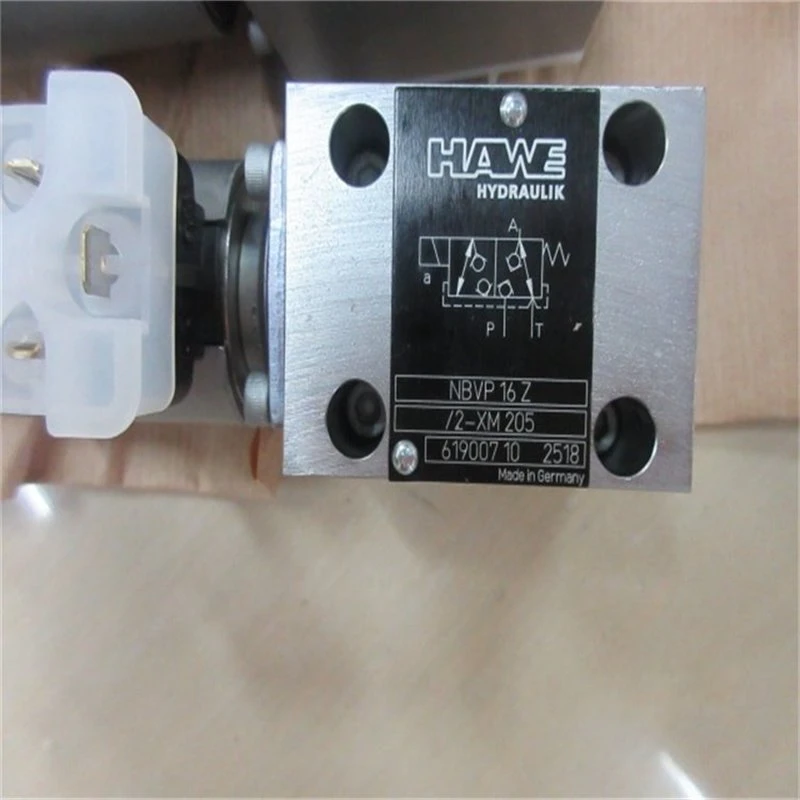

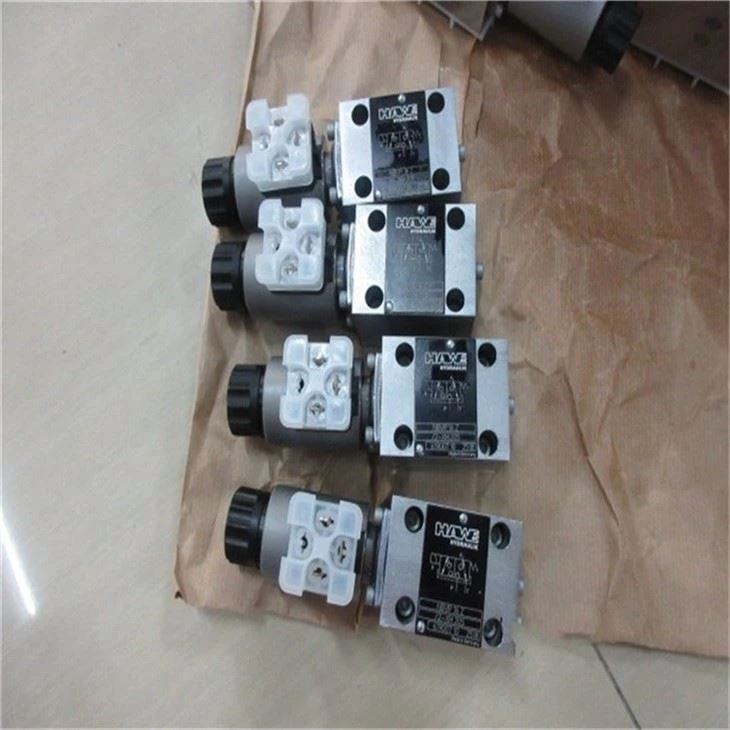

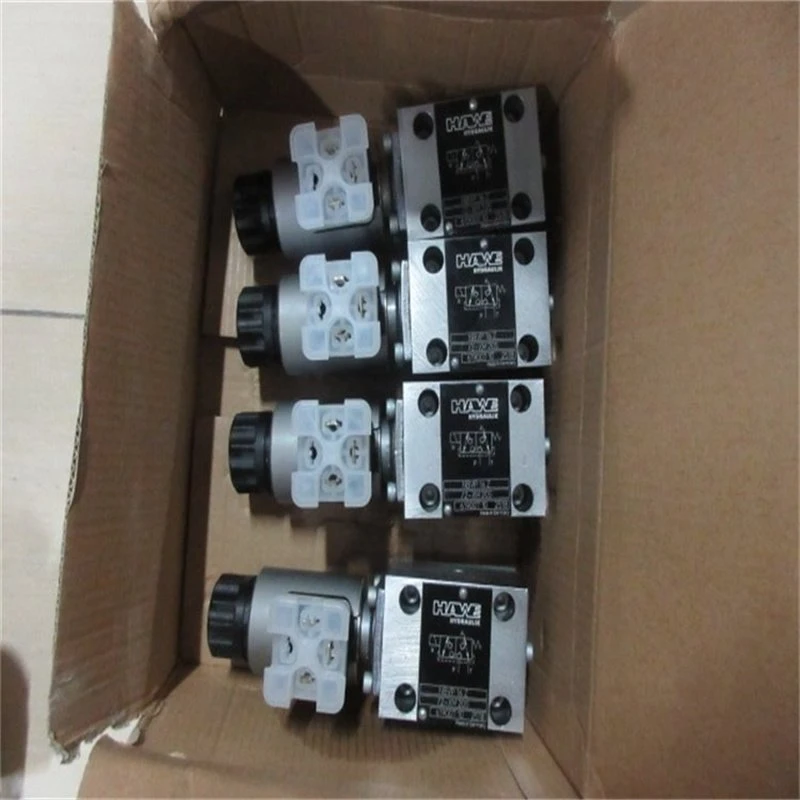

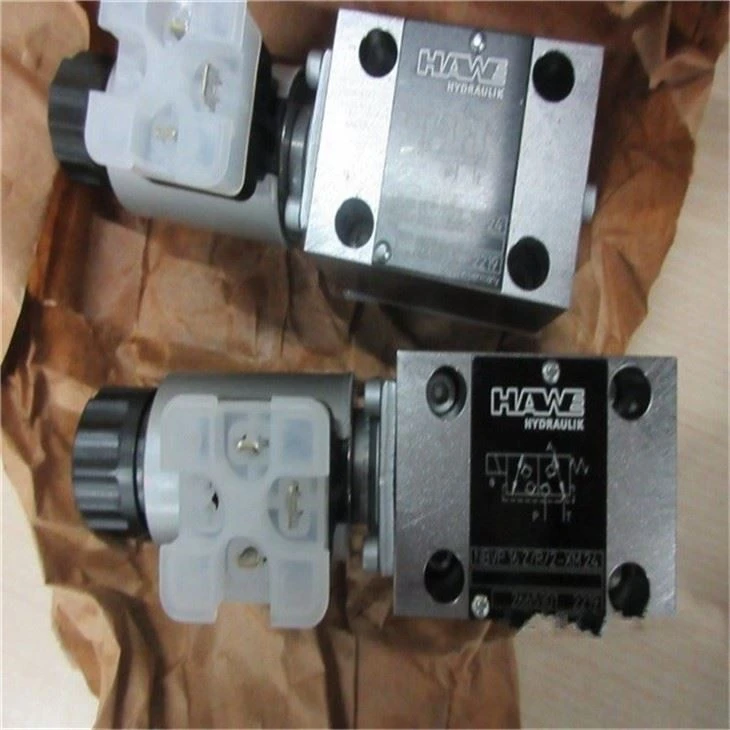

HAWE NBVP NBVP16Z series Valvula de cierre hydraulic Directional valve NBVP16Z/R/2-XM24 NBVP16Z/R/4-GM24The 2/2-, 3/2- and 4/3-way directional seated valves type NBVP 16 are cone seated valves and available with solenoid, hydraulic, pneumatic, or manual actuation. All ports of the 2/2- and 3/2-way directional valves are pressure resistant due to the internal pressure compensation. Valves featuring a spring return will return automatically into their idle position when not activated. The detented version will achieve its idle or working position after a brief impulse at the opposing solenoid. The 2/2- and 3/2-way directional valves are available with switching position monitoring and may be optionally equipped with directly mounted pressure switches. 4/2- and 4/3-way valves and valves with switching position monitoring may be optionally equipped with pressure switches or pressure gauges, wich can be directly mounted via the pick-up ports (G 1/8 (BSPP)) connected to the consumer ports A and B. |





![]()

![]()

![]()
