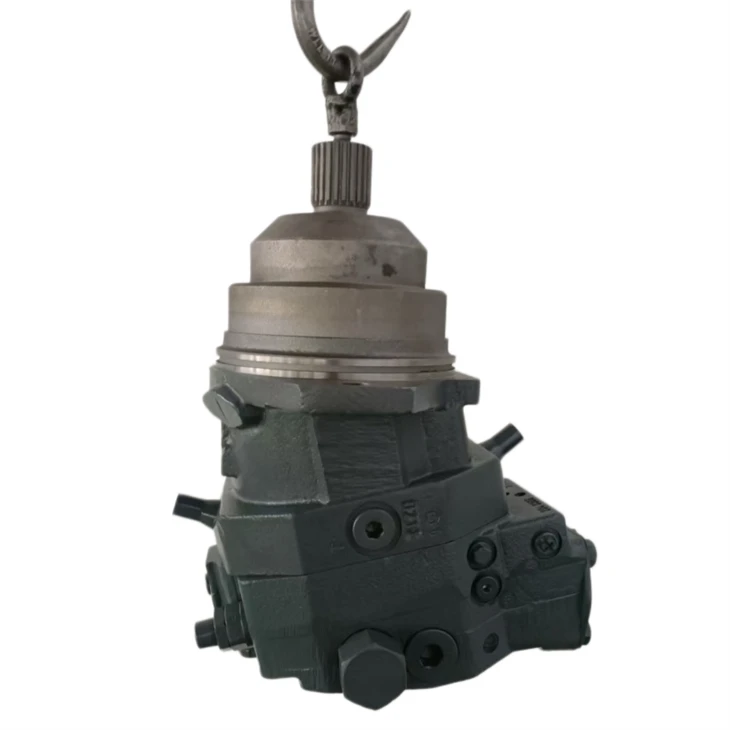

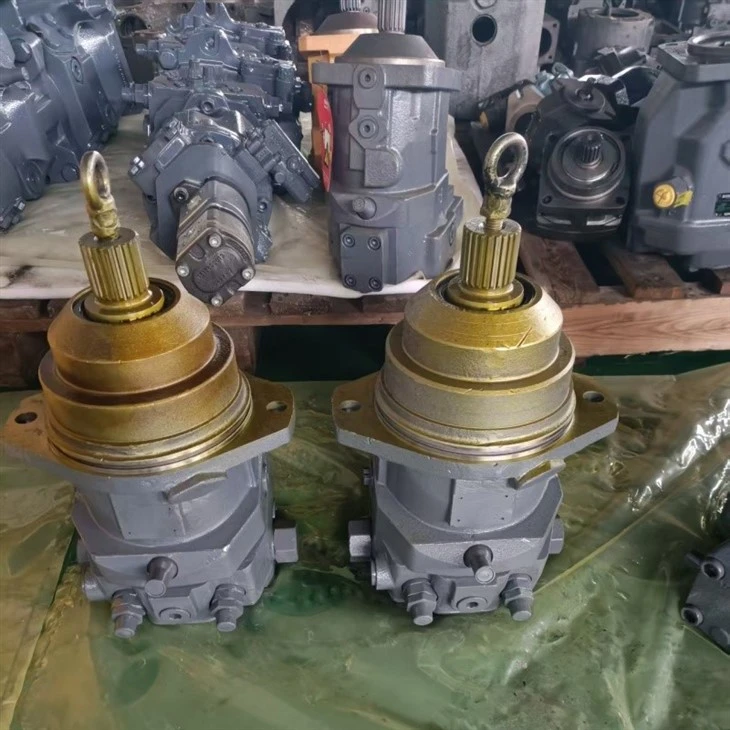

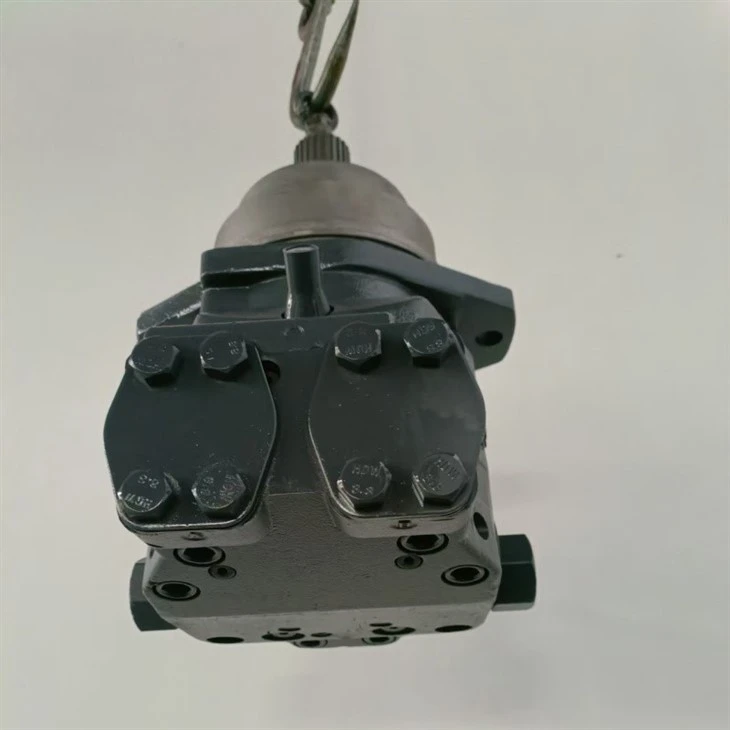

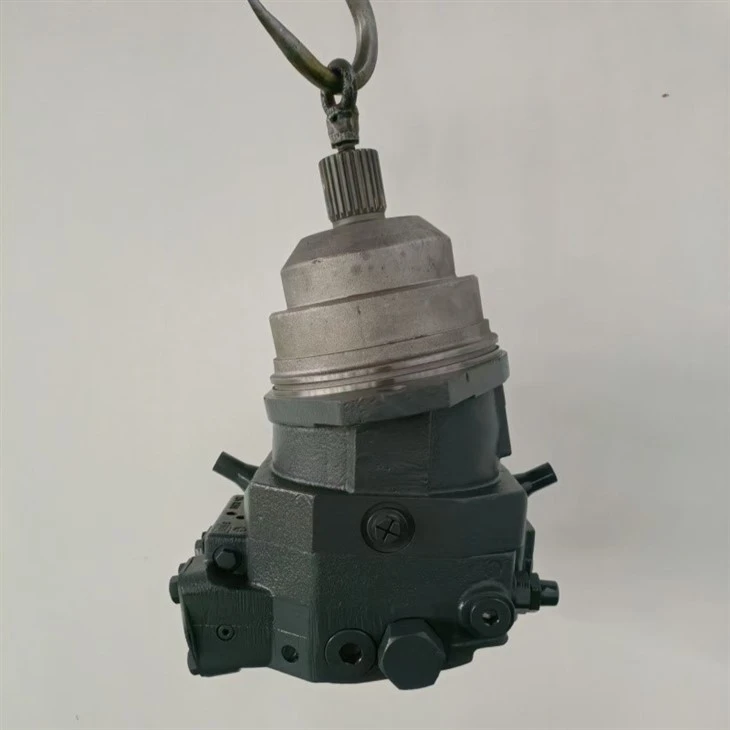

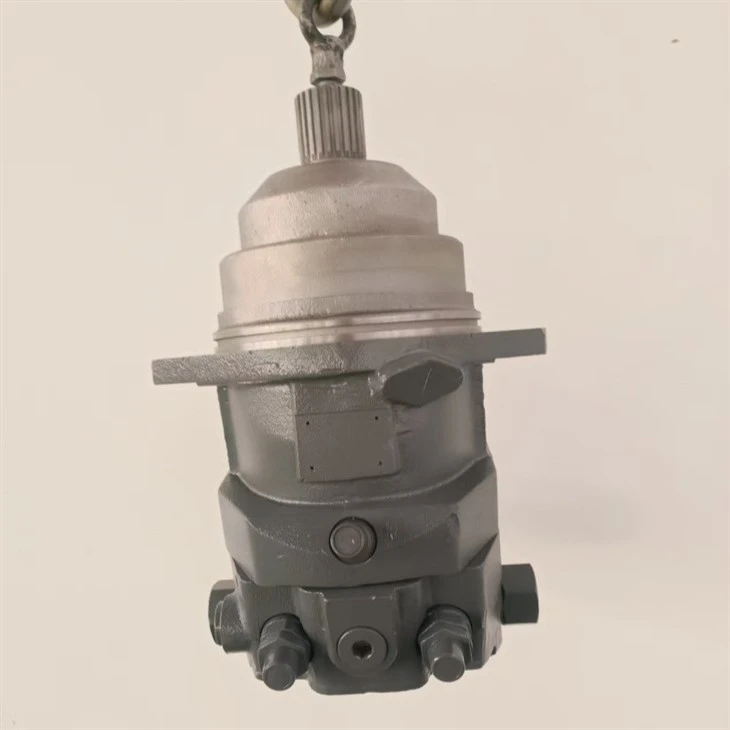

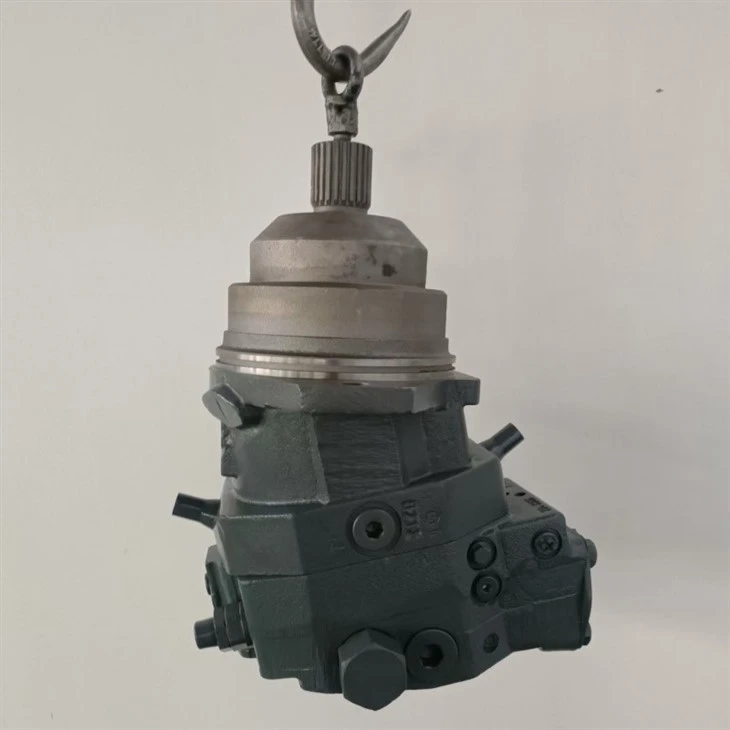

Replace Rexroth A6VE160HZ363W Hydraulic Pump

This A6VE160HZ363W is a bent‑axis variable‑displacement plug‑in piston hydraulic motor, compatible with both open and closed hydrostatic circuits. It features a maximum displacement of 160cc/r and supports stepless displacement adjustment from zero to maximum value, enabling flexible switching between speed and torque for various working conditions. Adopting hydraulic pressure‑limiting control, it delivers two working modes: high‑speed travel and high‑torque heavy‑load operation, ensuring stable performance during equipment startup, climbing and continuous operation.

Replace Rexroth A6VE160HZ363W Hydraulic Pump
●Max Displacement: 160cc/r, stepless adjustment 0‑160cc/r
●Control Mode: HZ3 hydraulic pressure‑limiting control
●Rated Pressure: 400bar, Peak Pressure: 450bar
●Max Speed: 3100rpm (at max displacement)
●Rotation: Bidirectional
●Mounting: Plug‑in central flange for travel reducer
●Application: Heavy‑duty crawler machinery travel drive

Replace Rexroth A6VE160HZ363W Hydraulic Pump Parameter table:

product-715-471

About Us:

Quanzhou Nuoyi Technology Co., Ltd. is a large comprehensive enterprise integrating the business of hydraulic pumps, hydraulic valves, hydraulic cylinders and other related products.

We export large volumes of products all year round to Germany, Mexico and many other countries. Our products are widely applied in numerous industries including construction machinery, agricultural machinery, industrial engineering, marine and water conservancy engineering, energy technology and tunnel engineering.

We keep enhancing our core competitive advantages and reshaping Made‑in‑China through technological innovation. Meanwhile, we improve and optimize our global supply chain and sales service system. We are committed to providing customers with efficient hydraulic technical solutions and quality products, and making greater contributions to social sustainable development, green city construction and building a better future.

Replace Rexroth A6VE160HZ363W Hydraulic Pump Product advantages:

Bent‑axis variable design, wide control range for high‑speed high‑torque operation

Retain original HZ two‑point hydraulic control, stable response

High pressure resistance up to 400bar, suitable for heavy‑load harsh conditions

Wear‑resistant friction pairs, low internal leakage, long service life

Compact structure, fast dynamic response

Cost‑effective with short lead time

100% factory pressure tested for reliable performance

Replace Rexroth A6VE160HZ363W Hydraulic Pump Application scenarios:

1. Travel drive for large excavators and rotary drilling rigs
2. Crawler cranes and heavy‑duty lifting machinery
3. Road rollers and other road construction equipment
4. Mining and forestry mobile machinery
5. Special heavy‑duty vehicles
6. Closed‑circuit hydrostatic transmission systems

A6VE160HZ363W Series Product Model:

A6VE160HZ3/63W‑VZL22200B

A6VE160HZ3/63W‑VZL22XB‑S

A6VE160HZ1/63W‑VAL020B‑S

A6VE160HD1/63W‑VAL020B

A6VE160EP2/63W‑VAL020B

A6VE160HA1/63W‑VAL020A
