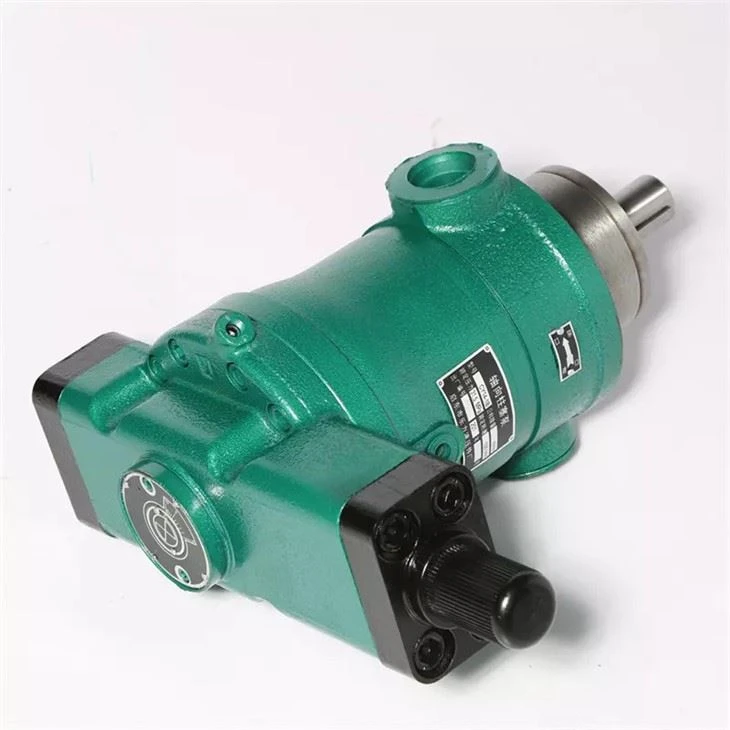

Hydraulic Axial Piston Pump SCY14-1B Series 10SCY14-1B 25SCY14-1B 40SCY14-1B 63SCY14-1B 80SCY14-1B 160SCY14-1B 250SCY14-1B

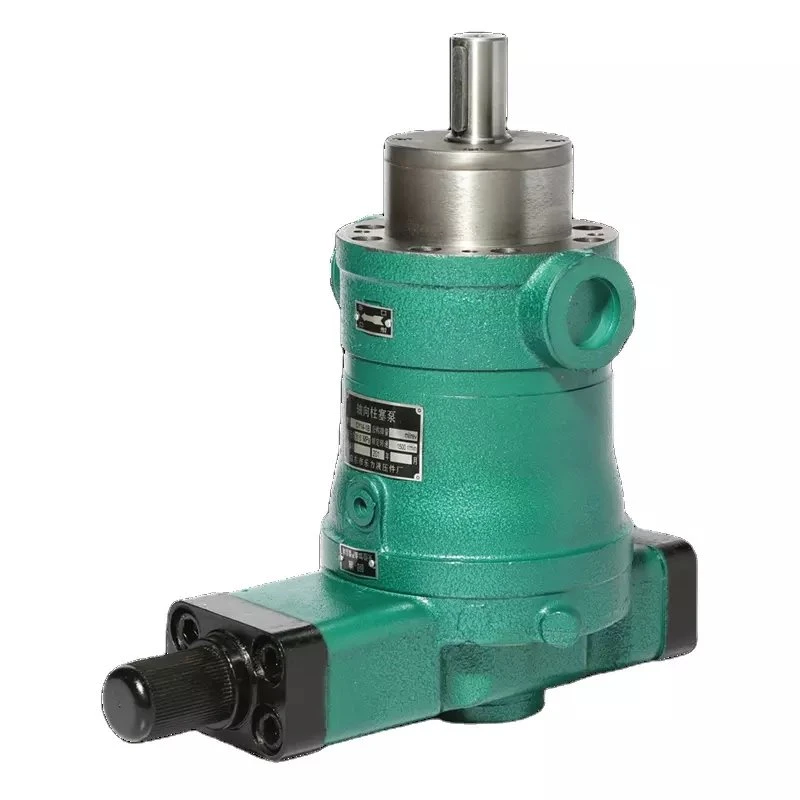

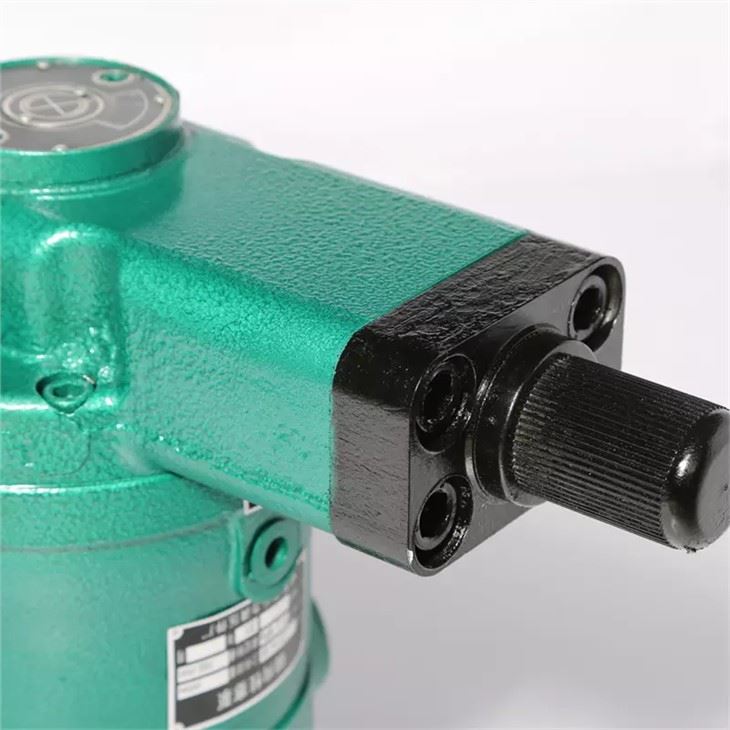

SCY series plunger pump is a manually controlled variable displacement plunger pump. The pump body is equipped with a handwheel to adjust the flow (as shown in the figure below). Common specifications and models include 10SCY14-1B, 32SCY14-1B, 40SCY14-1B, 63SCY14-1B, 80SCY14-1B, 160SCY14-1B, etc. Among SCY series variable displacement piston pumps, this specification has the highest displacement A small one. It is often used as auxiliary pump on the drilling rig, and also used on other hydraulic stations and other equipment. The pump adopts a straight shaft swashplate structure, and its internal components mainly include plunger Cylinder block, oil distribution plate, swash plate, variable mechanism, return plate, etc. There are three oil ports outside the pump, including oil inlet, oil outlet and oil return port

The plunger pump is an important device in the hydraulic system. It relies on the reciprocating movement of the plunger in the cylinder block to change the volume of the sealed working chamber to achieve oil suction and pressure. Plunger pump has the advantages of high rated pressure, compact structure, high efficiency and convenient flow adjustment, and is widely used in high pressure, large flow and occasions where flow needs to be adjusted, such as hydraulic press, engineering machinery and ships.
