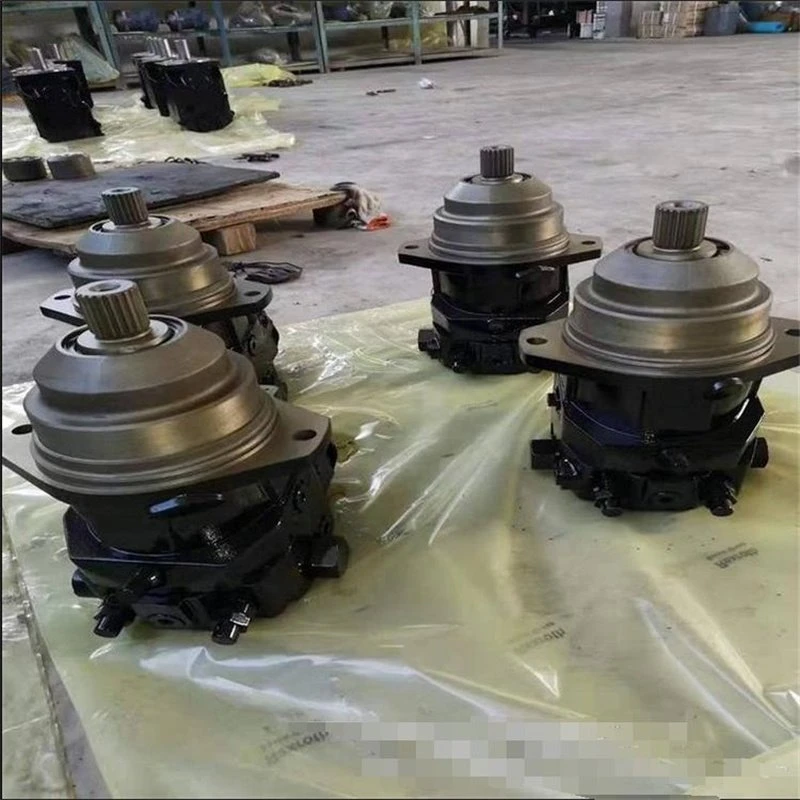

REXROTH Marine Plunger Motor A2FO080 Electro-hydraulic Motor

The correct choice of hydraulic fluid requires knowledge of the operating temperature in relation to the ambient temperature: in an open circuit, the reservoir temperature.

Send Inquiry

Description

Hydraulic pump	Cylinder block	Press pin	Valve plate	Barrel washer
Piston motor	Piston shoe	Snap ring	Shoe plate	Oil seal
Piston pump	Retainer plate	Coil spring	Bearing plate	Frication plate
Gear pump	Ball guide	Disk spring	Swash plate	Steel plate

The hydraulic fluid should be chosen so that the operating viscosity in the operating temperature range is within the optimum range (νopt see shaded area of the selection diagram). We recommended that the higher viscosity class be selected in each case. Example: At an ambient temperature of X °C, an operating temperature of 60 °C is set in the circuit. In the optimum operating viscosity range (νopt., shaded area), this corresponds to the viscosity classes VG 46 or VG 68; to be selected: VG 68.
